|分析点 / 参数||分析物||测量范围||适合分析仪|
|乙二醇 MEG||纯度 purity||80-100 % 透光率||OMA 过程分析仪|
推荐使用： OMA 过程分析仪
MEG is an important raw material in production of polyester fibers. The quality of the fibers is dependent on the purity level of the MEG precursor. MEG is therefore purified of impurities (e.g. diethylene glycol) by passing the stream through an ion exchange column. Over time, the column performance deteriorates and impurities begin breaking through.
Fiber grade MEG must comply with analytical purity tests in order to be salable. Additionally, the ion exchange columns should be replaced precisely at the point of efficiency dropoff in order to avoid both column waste and impure product.
The traditional offline method for MEG quality control relies on pulling samples for lab analysis. The lab system compares the sample's UV transmittance at a few wavelengths (220 nm, 240 nm, 275 nm, 350 nm) to that of demineralized water at the same wavelengths. Since pure MEG has zero absorbance in the UV range, a simple principle applies: higher transmittance = higher purity. Fiber-grade MEG is required to have at least 97% transmittance at 220 nm.

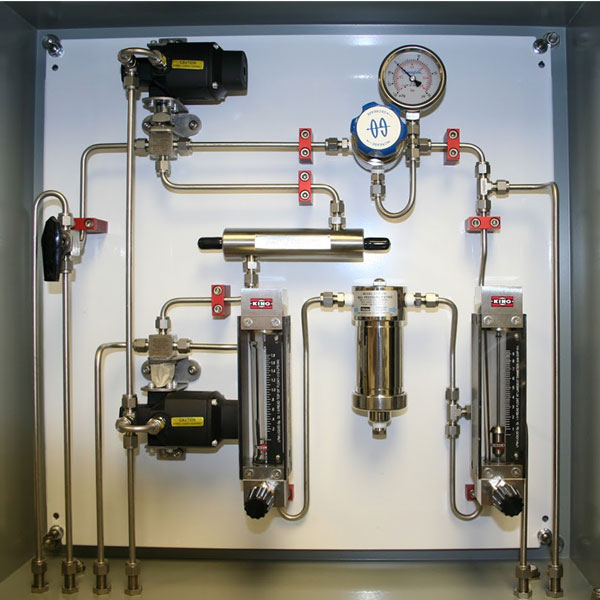

The OMA MEG Purity Analyzer applies the same principle but with enormous advantages, including: (1) continuous analysis updating every second, as opposed to slow sample transport for discrete lab measurements; (2) fast response for immediately pinpointing failure point of ion exchange column; (3) totally automated sampling system normalizes measurement by Auto Zero on distilled water; (4) installation of system close to sampling point for convenience of process adjustment.
